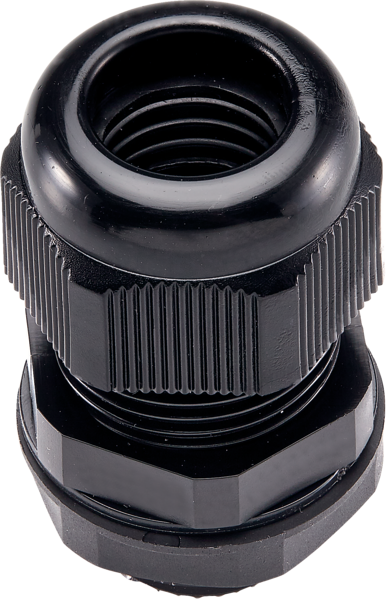

PA 6.6 cable glands
Build your product in 8 steps :
1
Status
- Actif
2
Pronto AU Part #
- 14215886
- 14215892
- 14215890
- 14215889
- 14215891
- 14215887
- 14215885
- 14215888
3
Mounting Hole (mm)
- 12.2
- 16.2
- 20.2
- 25.2
- 32.2
- 40.2
- 50.2
- 63.2
4
Minimum cable Ø (mm)
- 3
- 5
- 10
- 11
- 18
- 22
- 30
- 34
5
Maximum cable Ø (mm)
- 6.5
- 10
- 14
- 17
- 25
- 32
- 38
- 44
6
Inside Ø (mm)
- 6.7
- 10.4
- 14.4
- 17.3
- 25.5
- 32.5
- 38.5
- 44.5
7
Quantity
- 50
- 30
- 15
- 10
- 5
- 2
8
Selling unit
- Un
Specifications
Tech
Material: UL approved polyamide 6.6.
Flammability: UL 94V-2.
Operating temperature: -20 ° C + 100 ° C
Metric Pitch: 1.5 mm.
Colour: black.
Halogen free.
Uses & advantages
Info
Contents: locknut, washer, body, seal and nut.
Application(s) :
Can be mounted directly onto pre-drilled panel hole using the locknut or can be directly screwed onto metric threaded holes.
Cable gland nylon black ISO/M12 Ø 3-6.5 mm IP68 (x 50)
