Non insulated terminals
Build your product in 12 steps :
1
Status
- Active
2
Pronto AU Part #
- 14189954
- 14189957
- 14189958
3
Type
- Female connector
4
Section (mm²)
- 0.5 - 0.75
- 0.3 - 1.25
- 1.5 - 2.5
5

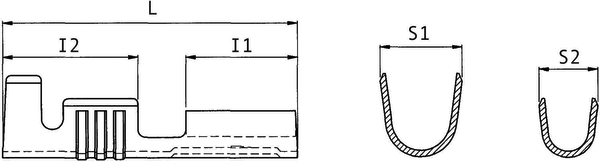

L (mm)
- 15.5
- 19
6
L1 (mm)
- 6.3
- 6.4
- 7.2
7
l2 (mm)
- 6.3
- 7
- 8.7
8
s1 (mm)
- 3.8
- 5.6
- 5.3
9
s2 (mm)
- 2.8
- 2
- 3.8
10
Thickness (mm)
- 0.25
- 0.30
- 0.40
11
Packaging type
- Plastic box
12
Quantity per box
- 100
Specifications
Tech
Tinned brass.
BIZ231059
- 22 AWG:3 A
- 18 AWG:7 A
BIZ231060
- 22 AWG:3 A
- 16 AWG:10 A
BIZ231061
- 16 AWG:10 A
- 14 AWG:15 A
BIZ 231062
- 16 AWG : 10 A
- 14 AWG : 15 A
BIZ 231063
- 16 AWG : 10 A
- 14 AWG : 15 A
BIZ231059
- 22 AWG:3 A
- 18 AWG:7 A
BIZ231060
- 22 AWG:3 A
- 16 AWG:10 A
BIZ231061
- 16 AWG:10 A
- 14 AWG:15 A
BIZ 231062
- 16 AWG : 10 A
- 14 AWG : 15 A
BIZ 231063
- 16 AWG : 10 A
- 14 AWG : 15 A

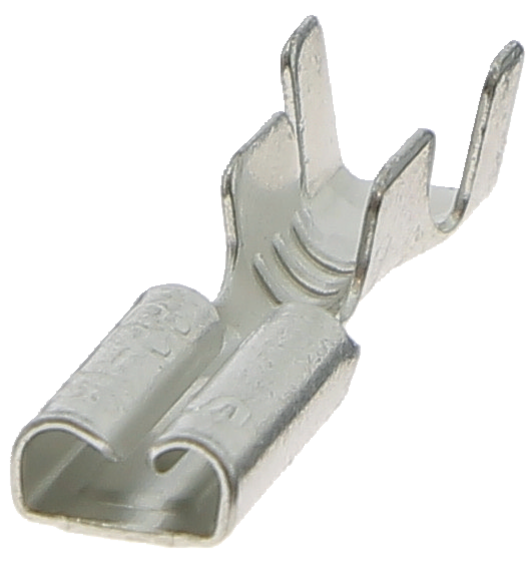

Brass female quick connector 2.8 x 0.5 mm (x 100)
