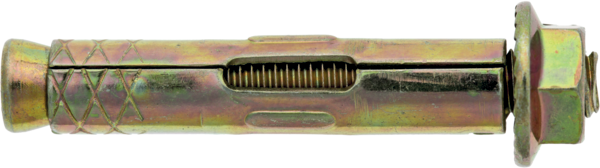

Sleeve anchors hexagonal nuts

Build your product in 8 steps :

1

Ø (mm)

  • 8
  • 10
2

Status

  • Actif
3

Pronto AU Part #

  • 10704636
  • 10704616
  • 10704618
  • 10704620
4

Concrete C35 tensile load (daN*)

  • 345
  • 415
  • 435
  • 445
5

Concrete C35 shear load (daN*)

  • 620
  • 745
  • 785
  • 805
6

Selling unit

  • Each
7

Quantity

  • 100
  • 50
8

Length (mm)

  • 40
  • 50
  • 75
Specifications Tech

Yellow zinc plated steel.
Head type: hex nut.

Uses & advantages Info

Avantages :

Full thread system can fit to various fixture thicknesses.
Long body enables use in soft concrete thanks to good repartition of compression load.

Application(s) :

Used in concrete (soft concrete as well) and masonry applications.
Ideal for fastening window frames, partitions, cabinets and more.
A pre-drilled hole, equal to the anchor diameter, is required.

  • Concrete
    Concrete
  • Hollow brick
    Hollow brick
Methode of use and advice Info

Methode of use :

Drill a hole into the surface equal to the diameter and the length of the anchor.
Clean the hole.
Insert the bolt through the item and into the hole.
Tighten the nut with the appropriate torque.

Sleeve anchor hexagonal nut Ø 8 x 40 mm (x 100)
