Stainless steel barb locking PA 6.6 cable ties

Build your product in 7 steps :

1

Color

2

Width (mm)

  • 3.6
  • 4.8
  • 7
3

Thickness (mm)

  • 1.2
  • 1.5
  • 1.6
4

Maximum clamping Ø (mm)

  • 35
  • 80
  • 45
  • 81
  • 100
  • 230
5

Traction strength (N)

  • 178
  • 220
  • 500
6

Packaging per box

  • 100
  • 50
7

Length (mm)

  • 155
  • 284
  • 186
  • 295
  • 361
  • 780
Specifications Tech

Pull-tie material: polyamide 6.6.
Raw material flammability: UL94V-2.

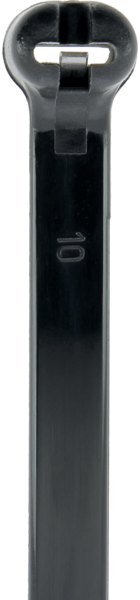

Barb material: stainless steel 304.
Installation temperature: - 40 to +60 °C.
Operating temperature: -40 to +85 °C.

  • UL USA
Uses & advantages Info

Avantages :

No resistance on tightening.
High level of abrasion resistance.
Halogen-free.
UV-resistant.

Application(s) :

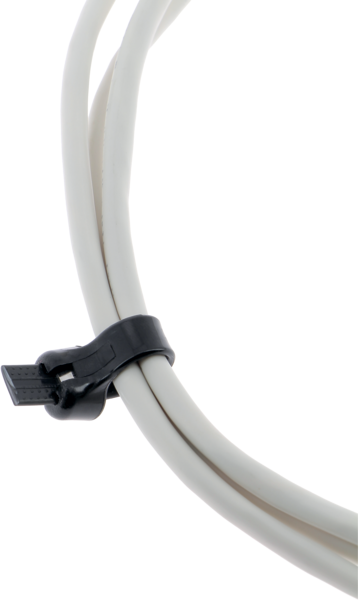

These cable ties are designed for interior and exterior fixing applications. Perfect for environments where vibration is present, the metal barb ensures regular high performance levels and long-term reliability.

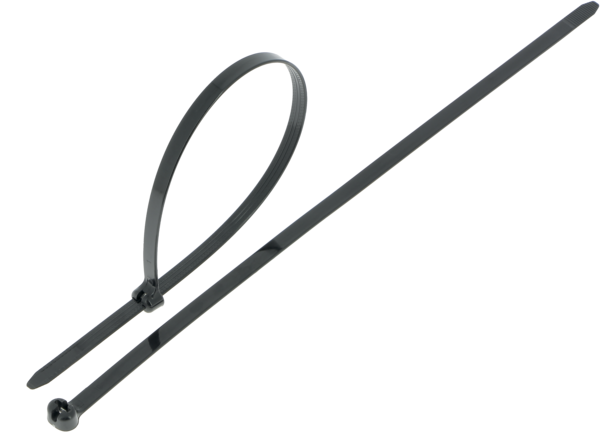

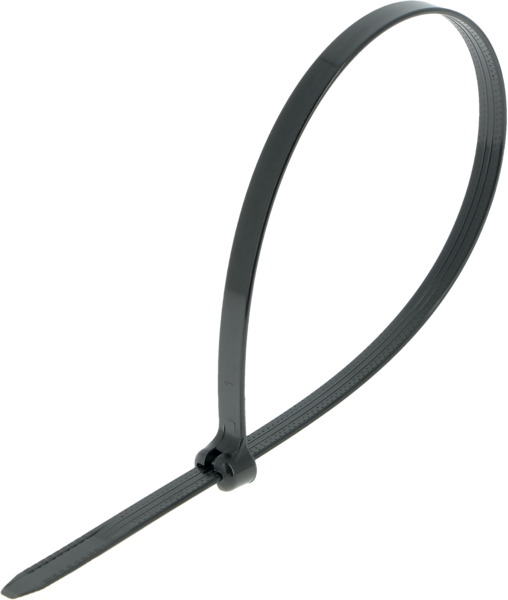

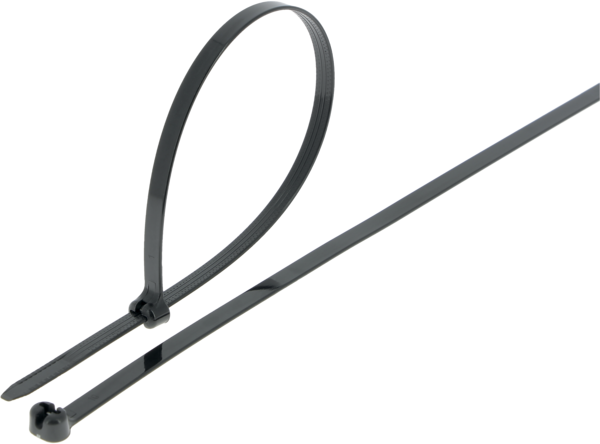

Stainless steel barb lock PA 6.6 cable tie 155 x 3.6 mm UV black (x 100)
