Biz'Gel sealing gel in pouch
- Technical specifications
- Safety data sheet (SDS)
- RoHS Declaration
Dielectric strength: > 20 kV/mm.
Volume resistivity: > 2.1015 Ω/cm.
Voltage: from 0.6 to 1 kV.
Installation temperature: -15 °C to +55 °C.
Operating temperature after polymerization: -60 °C to +200 °C.
Fast reticulation: less than 10 minutes at 23 °C.
- Net volume 210ml
Bi-component gel with high dielectric, thermal and sealing characteristics.
Sealed pouches with preset dosage of the bi-component sealing gel.
Dosage preset according to the box to be filled.
Sets quick (according to temperature).
Polymerization, even at low temperatures.
Sealing and insulation of electrical connections.
Ideal for sealing junction boxes installed outdoors or in humid environment, with its preset dosage adapted to the dimensions of most standard junction boxes.
Suitable for sealing outdoor automated devices, intercoms, outdoor electrical and swimming pool installations, etc.
Methode of use :

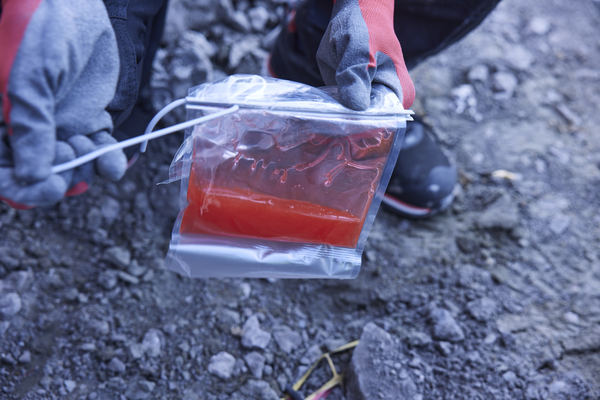

Remove the tab separating the 2 components.

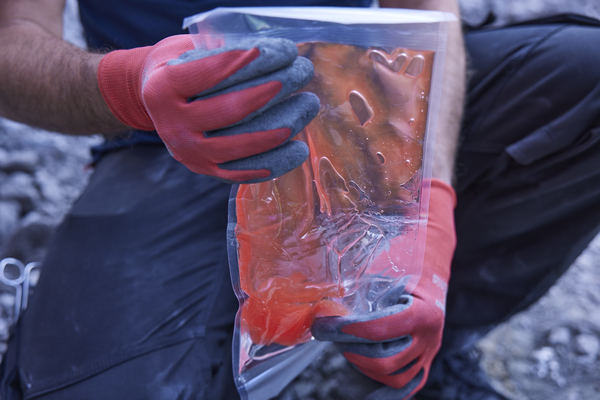

Mix the components for 30 seconds.
Cut a hole in one of the pouch corners.

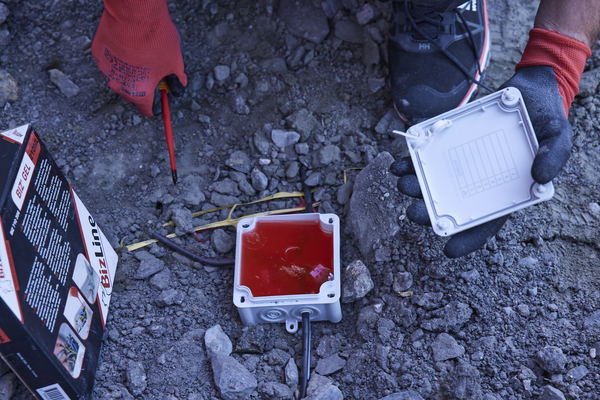

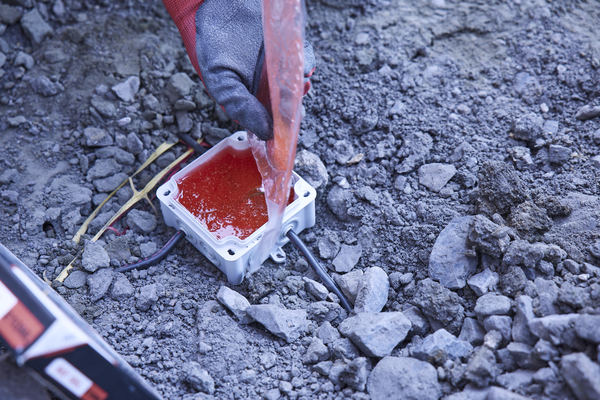

Pour the gel into the product to make it watertight.
For optimum polymerization, mix Biz'Gel at a temperature close to 23 °C.
Polymerization may be longer if the product is conditioned at lower temperatures.
IP68 index only when used in appropriated casing.
