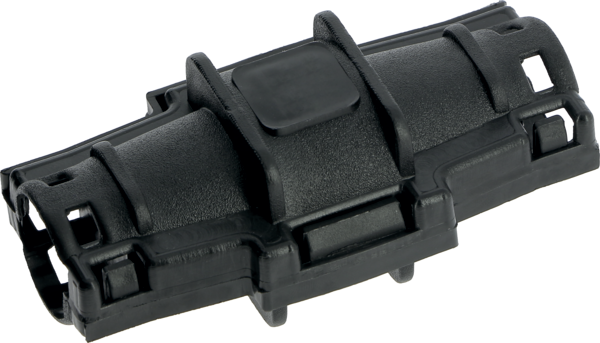

Squale connection kits
BIZ 710 294
Quick, waterproof, efficient
- Technical specifications
- Safety data sheet (SDS)
- Declaration of conformity
- RoHS Declaration
Specifications
Tech
Voltage: 0.6 to 1 kV.
- Status Actif
- Pronto AU Part # 12283827
- Capacity 1 conductor 1.5-50mm²
- Capacity 2 conductors 1.5-10mm²
- Capacity 3 conductors 1.5-10mm²
- Capacity 4 conductors 1.5-6mm²
- Dimensions 105 x 55mm
Uses & advantages
Info
Avantages :
IPX8 for immersed installations.
Full range dedicated to residential and tertiary.
Non toxic.
Application(s) :
For connecting, insulating, sealing and protecting copper electrical cables.

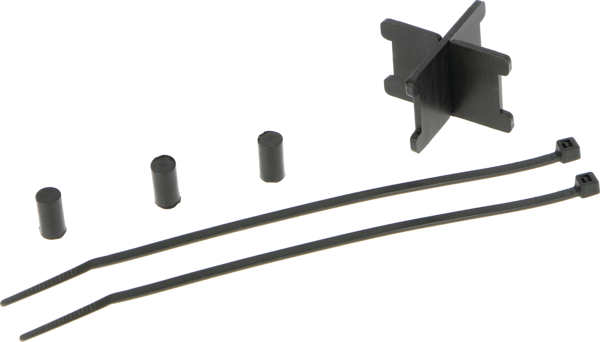

Supplied with cable centring device and cable ties for holding conduits.
Methode of use and advice
Info
Methode of use :
Strip and connect the cables.
Insert the separator and centre the cables in the enclosure.
Close the enclosure and lock in the conduits.
Connexion SQUALE 6 kit for sealed connection up to 4 conductors of wire section 6 mm²
