PG and ISO step drill

BIZ 700 095
  • Germany
Ideal for electricians!
Specifications Tech

Hexagonal shank 10 mm Ø.
5 % cobalt HSS steel.
Helix flutes.
Cross shaped sharpening.

  • Status Actif
  • Pronto AU Part # 14196163
  • Drilling Ø 6.5-32.5mm
  • Shank Ø 10mm
  • Hardness 65-66HRC
  • Numbers of floors 12
Uses & advantages Info

Compatible with PG and ISO.

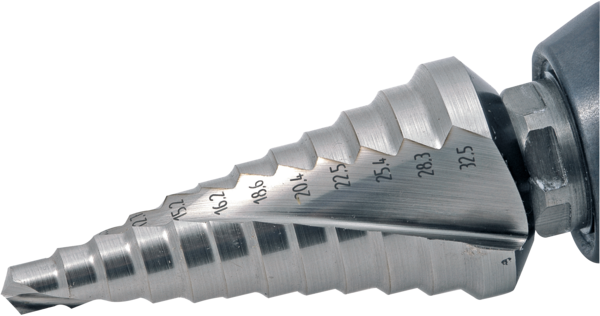

12 laser marked steps.
Three flats milled on Ø 10 mm shank to prevent slipping in the chuck.

Avantages :

Fast chip evacuation by helix flute increases cutting capacity.
5 % cobalt steel for constant drilling temperature and for long life.
Drilling accuracy with offset point.

Application(s) :

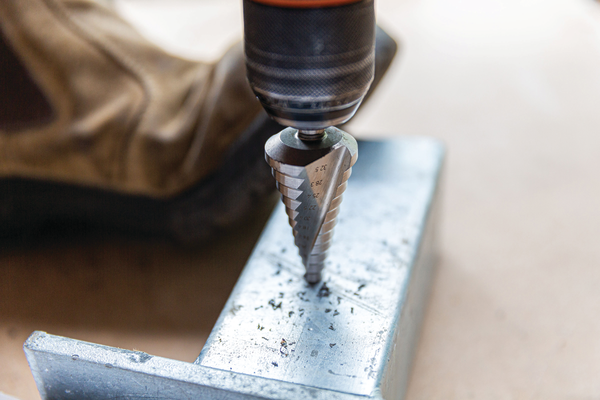

Drills through metal sheet up to 4 mm thick.
For drilling non-ferrous metals, stainless steel and synthetic materials up to 4 mm thickness.

  • Metal
    Metal
  • Stainless steel
    Stainless steel
Methode of use and advice Info

Advice :

Use cutting oil to extend the tool's lifetime.

ISO & PG step drill bit Ø 10 mm 12 steps
