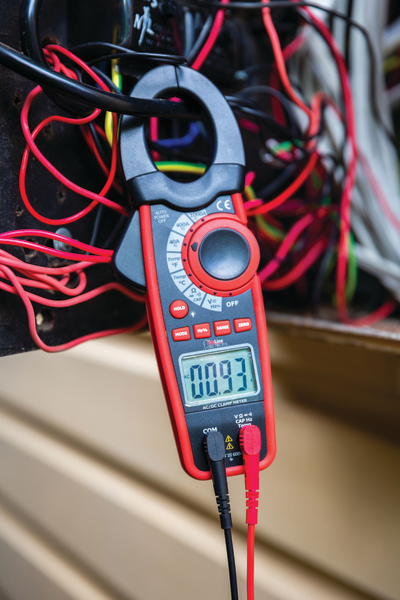

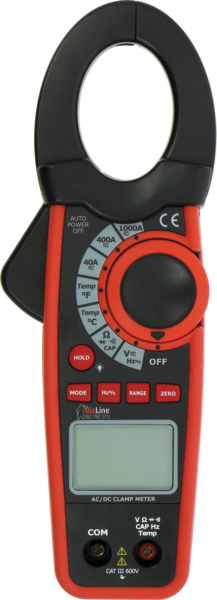

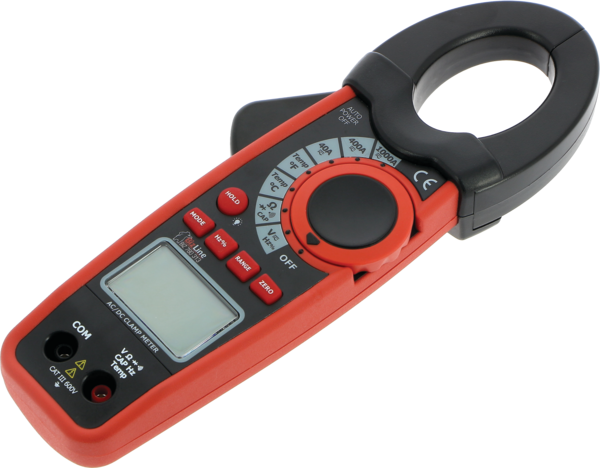

Current clamp
BIZ 780 313
- Technical specifications
- Instructions
- Declaration of conformity
- REACH Declaration
- RoHS Declaration
Specifications
Tech
Display: LCD 4000 measurements.
AC power: 50/60 Hz (AAC).
TRMS.
Voltage bandwidth: AC 50/60 Hz (VAC).
Operating temperature: -10 °C to +50 °C.
Storage temperature: -30 °C to +60 °C.
Relative humidity: 90% (0 °C to 30 °C), 75% (30° C to 40 °C), 45% (40 °C to 50 °C).
Operating altitude (m): 3000.
Storage (m): 10,000.
Overvoltage: category III 600 V.
Battery: one 9 V battery.
Automatic shut-off: after approx. 35 min.
Dimensions (mm): 229 x 80 x 49.
Weight (g): 303.
Safety: for indoor use and overvoltage category II, pollution degree 2.
Category II includes local level, appliances, portable equipment, etc. with transient overvoltages than overvoltage category III.
Digital clamp meter 600 V
