Pre-insulated terminals and sleeves, wire cross-section 1.5 to 2.5 mm²

Build your product in 12 steps :

1

Type

  • Female bullet connector
  • Male bullet connector
  • Spade terminal
  • In line splice terminal
  • Waterproof sleeve
  • Lip blade terminal
  • Pin connector
  • Female quick connector
  • Fully insulated female quick connector
  • Male tab quick connector
  • Male female clip
  • Ring terminal
2

Connector material

  • Tinned brass
  • Tinned copper
3

Insulating Material

  • PVC
  • high density PE
4

Screw Ø (mm)

  • -
  • 3
  • 4
  • 5
  • 6
  • 8
  • 10
5

L (mm)

  • 23.3
  • 21.2
  • 21.5
  • 27.5
  • 36
  • 27.9
  • 22.3
  • 20.8
  • 22.2
  • 21.8
  • 22.5
  • 18.3
  • 27.3
  • 31
6

Ø I (mm)

  • 2.3
  • 2.5
7

Thickness (mm)

  • 0.40
  • 0.80
  • -
8

Quantity

  • 50
  • 100
9

Packaging type

  • Plastic box
10

T (mm)

  • 3.2
  • 4.3
  • 5.3
  • 6.4
  • 6.6
  • 8.4
  • 10.5
11

A (mm)

  • 5.7
  • 7.9
  • 9.3
  • 12
  • 6.35
  • 6.6
  • 8.5
  • 9.5
  • 13.6
12

E Ø (mm)

  • 5
  • 4.7
Specifications Tech

With copper sleeve on barrel.

  • UL USA

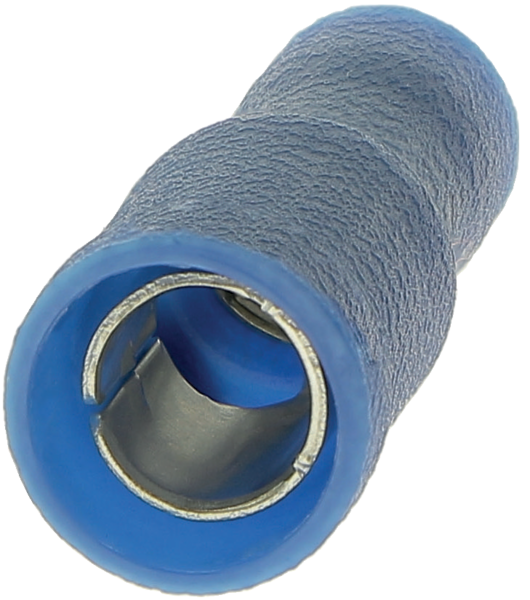

Blue fully insulated female bullet connector 5 mm DG (x 50)
